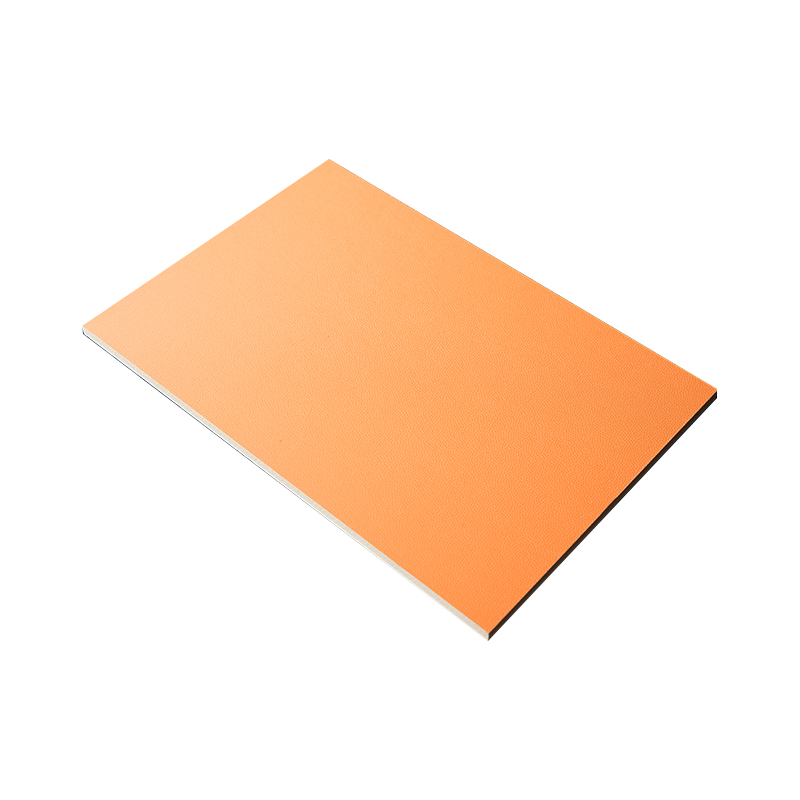

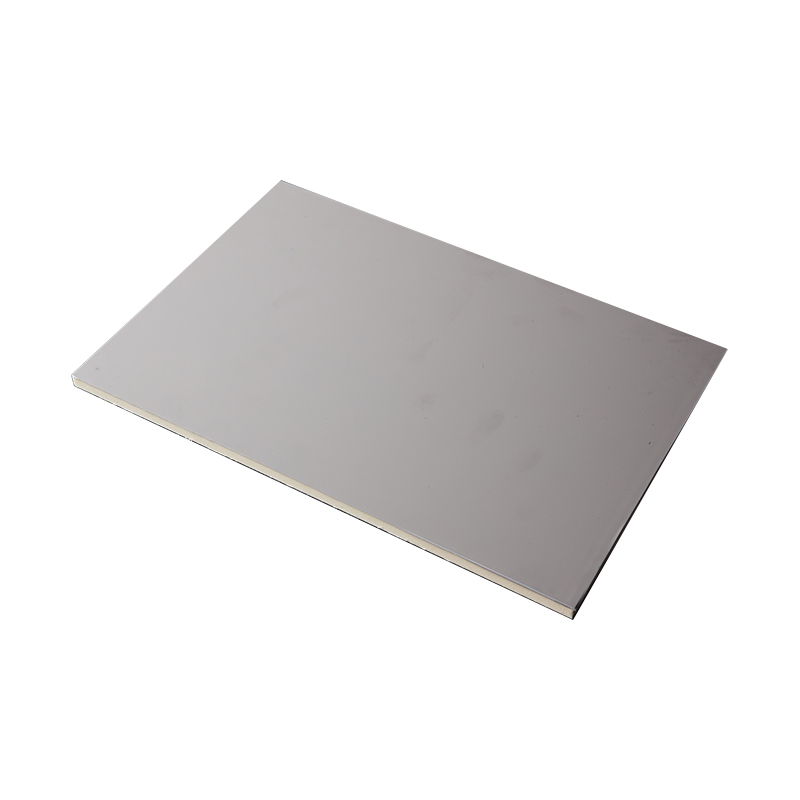

Form Core High-Density Flat Surface WPC Form Panel for Interior Wall YXWPC1225

WPC foam board is an environmentally friendly board. The main raw materials include sawdust, wood, bamboo and other fibers. It does not contain any glue in the production process. WPC foam board is widely used in furniture, flooring, wall panels and other decorative fields. In furniture manufacturing, it can replace solid wood materials, has good processing performance and high efficiency, and helps to reduce wood consumption. In decorative materials such as floors and wall panels, WPC foam board can be used as an environmentally friendly, beautiful and durable alternative material. WPC foam board has the characteristics of environmental protection, wear resistance, waterproof and fire resistance.

Dapatkan penawaran harga
  • menggambarkan
  • tentang Yunxi
  • Hubungi kami
Composition: WPC
Thickness (mm): 5
Density (g/cm3) or weight: 0.6
Width (cm): 122
Length (m): 2.44/2.6/2.8/3/3.2/3.6/4
Seam: /
Shape of the hole: /

Pengenalan Produk:

Form Core Series

Form Core High-Density Flat Surface WPC Form Panel for Interior Wall

Wood-plastic composite form panel engineered for interior wall applications requiring flatness, structural rigidity, and moisture resistance.
Thickness 5 mm
Density 0.6 g/cm³
Width 122 cm
Lengths 7 options
Length range 2.44m to 4.0m
Water absorption Less than 0.5%
Fire rating Class B1
Flexural strength 32 MPa

This high-density WPC form panel is manufactured from wood-plastic composite with a flat surface finish. The 5 mm thickness provides structural rigidity for interior wall applications. Panel width is 122 cm with density of 0.6 g/cm³ achieving balance between strength and weight. Length options range from 2.44 m to 4.0 m in seven increments. The flat surface accepts paint, wallpaper, or decorative film application. Suitable for residential and commercial interior wall cladding where panel flatness is specified.

D
High-Density Form Core
0.6 g/cm³ density provides consistent flatness across the panel surface. The form core eliminates surface waviness common in lower density panels, ensuring uniform finish for paint and wallpaper applications.
F
Flat Surface Finish
Smooth, non-porous surface ready for decorative finishing. Accepts liquid paints, vinyl wraps, and wallpapers without additional sealing. Surface flatness tolerance of ±0.3 mm per linear meter.
W
Waterproof Composition
Closed-cell WPC structure with water absorption below 0.5 percent prevents swelling, warping, or mold growth in high-humidity interior environments such as bathrooms and kitchens.
S
Dimensional Stability
Linear expansion coefficient of 0.045 mm per meter per degree Celsius. Formulation resists warping, curling, and edge cupping across seasonal humidity and temperature changes.
Technical Specifications
Composition Wood-Plastic Composite (WPC)
Thickness 5 mm ±0.2 mm
Density 0.6 g per cubic centimeter
Width 122 cm
Length options 2.44 / 2.6 / 2.8 / 3.0 / 3.2 / 3.6 / 4.0 m
Water absorption Less than 0.5 percent (24h immersion)
Flexural strength 32 MPa at 23 degrees Celsius
Fire rating Class B1 (self-extinguishing)
Formaldehyde emission E0 grade (less than 0.05 mg per cubic meter)
Edge profile Square cut, sanded
Application Domains
Residential wall cladding
Commercial office partitions
Paintable wall substrates
Wallpaper backing panels
Bathroom wall lining
Kitchen splashback substrate
Retail display paneling
Healthcare facility walls
Frequently Asked Questions
Can the flat surface accept direct paint application?
Yes. The smooth, non-porous surface accepts water-based latex paints and acrylic paints without priming. For dark-to-light color changes, a universal primer improves coverage. Oil-based paints require compatibility testing before full application.
How does the density compare to standard WPC panels?
At 0.6 g/cm³, this panel sits in the mid-density range. Standard decorative WPC panels typically range from 0.5 to 0.55 g/cm³. The increased density improves screw-holding strength and surface flatness for finishing applications.
What installation methods are compatible?
Direct adhesive bonding using polyurethane construction adhesive, screw fixing with countersunk heads, or Z-clip mechanical hanging systems. For adhesive installation, substrate must be flat within 2 mm per meter.
Is the panel suitable for wet area installations?
Yes. Water absorption below 0.5 percent and closed-cell structure prevent moisture ingress. For shower surrounds, seal panel edges and joints with neutral-cure silicone to prevent water wicking into substrate.
Storage: Keep panels flat on level surface, stack height under 1 meter. Acclimate for 48 hours at 15 to 30 degrees Celsius before installation. Warranty: 10 years against manufacturing defects.
Specifications represent standard manufacturing parameters. Verify local building code compliance before installation.
